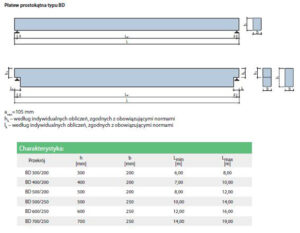

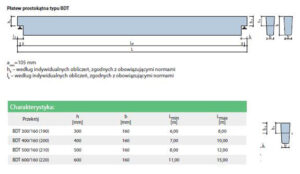

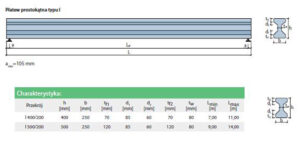

Roof beams | Pekabex - budownictwo prefabrykowane https://test.pekabex.com/en/offer/products/roof-beams/ Tue, 01 Feb 2022 08:15:02 +0000 en-US hourly 1 https://wordpress.org/?v=6.9.4 https://test.pekabex.com/wp-content/uploads/2022/02/cropped-favicon-32x32.png Roof beams | Pekabex - budownictwo prefabrykowane https://test.pekabex.com/en/offer/products/roof-beams/ 32 32 Purlins https://test.pekabex.com/en/offer/products/roof-beams/purlins/ Fri, 24 Feb 2017 07:34:04 +0000 Purlins are the carrying elements of the roof structure positioned perpendicularly to the girders.   They are the direct support for the roofing. Purlins may be produced as the reinforced […]

Artykuł Purlins pochodzi z serwisu Pekabex - budownictwo prefabrykowane.

]]> Purlins are the carrying elements of the roof structure positioned perpendicularly to the girders.



They are the direct support for the roofing. Purlins may be produced as the reinforced or prestressed elements of rectangular, trapezoid, or I-shaped sections.

Artykuł Purlins pochodzi z serwisu Pekabex - budownictwo prefabrykowane.

]]> Beams of IT type https://test.pekabex.com/en/offer/products/roof-beams/beams-of-it-type/ Fri, 24 Feb 2017 07:31:27 +0000 The beams of IW type are the elements of variable height and constant inclination of 2.5% in one direction, span from 10 m to 40 m.   The cross section […]

Artykuł Beams of IT type pochodzi z serwisu Pekabex - budownictwo prefabrykowane.

]]> The beams of IW type are the elements of variable height and constant inclination of 2.5% in one direction, span from 10 m to 40 m.



The cross section consists of lower flange plate, web, and upper flange plate. They are used as roof girders forming the inclination of roof slope.

Artykuł Beams of IT type pochodzi z serwisu Pekabex - budownictwo prefabrykowane.

]]> Beams of IW type https://test.pekabex.com/en/offer/products/roof-beams/beams-of-iw-type/ Fri, 24 Feb 2017 07:28:42 +0000 The beams of IW type are the elements of constant height of cross section consisting of lower flange plate, web, and upper flange plate.   They have span from 10 […]

Artykuł Beams of IW type pochodzi z serwisu Pekabex - budownictwo prefabrykowane.

]]> The beams of IW type are the elements of constant height of cross section consisting of lower flange plate, web, and upper flange plate.



They have span from 10 m to 15 m and are used for supporting the roof girders without using the columns.

Artykuł Beams of IW type pochodzi z serwisu Pekabex - budownictwo prefabrykowane.

]]> Beams of IVO type https://test.pekabex.com/en/offer/products/roof-beams/beams-of-ivo-type/ Fri, 24 Feb 2017 07:25:38 +0000 The beams of IVO type are the I-section elements of variable cross section height, the lower flange plate is straight, the upper flange plate has inclination of 5%.   The […]

Artykuł Beams of IVO type pochodzi z serwisu Pekabex - budownictwo prefabrykowane.

]]> The beams of IVO type are the I-section elements of variable cross section height, the lower flange plate is straight, the upper flange plate has inclination of 5%.



The IVO beams have holes for the installation. They are used as the roof girders of large span from 18 m to 45 m. Those beams have inclination of 5% in both directions.

Artykuł Beams of IVO type pochodzi z serwisu Pekabex - budownictwo prefabrykowane.

]]> Beams of IV type https://test.pekabex.com/en/offer/products/roof-beams/beams-of-iv-type/ Fri, 24 Feb 2017 07:22:57 +0000 The beams of IV type are the I-section elements of variable cross section height, the lower flange plate is straight, the upper flange plate has inclination of 5%.   They […]

Artykuł Beams of IV type pochodzi z serwisu Pekabex - budownictwo prefabrykowane.

]]> The beams of IV type are the I-section elements of variable cross section height, the lower flange plate is straight, the upper flange plate has inclination of 5%.



They are used as the roof girders of large span from 18 m to 45 m. Those beams have inclination of 5% in both directions.

Artykuł Beams of IV type pochodzi z serwisu Pekabex - budownictwo prefabrykowane.

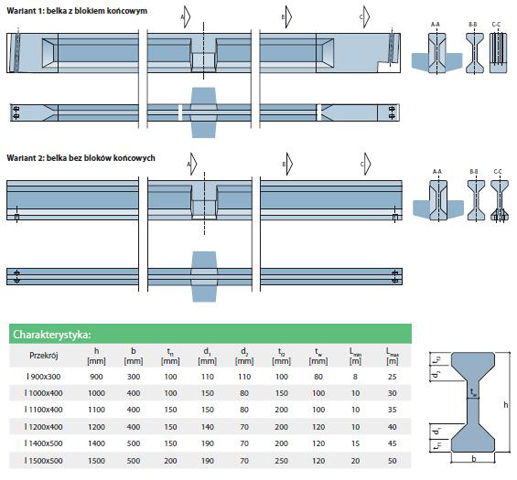

]]> Beams of I type https://test.pekabex.com/en/offer/products/roof-beams/beams-of-i-type/ Thu, 23 Feb 2017 15:56:36 +0000 The beams of I type are the elements of constant height of cross section consisting of lower flange plate, web, and upper flange plate.   They are used as the […]

Artykuł Beams of I type pochodzi z serwisu Pekabex - budownictwo prefabrykowane.

]]> The beams of I type are the elements of constant height of cross section consisting of lower flange plate, web, and upper flange plate.



They are used as the roof girders of large span from 10 m to 45 m. The sections dimensions are designed in a way allowing for reaching the maximum load capacity in the efficient and economical way.

Artykuł Beams of I type pochodzi z serwisu Pekabex - budownictwo prefabrykowane.

]]>
